• OMS‐P1200 Obscuration Monitoring System

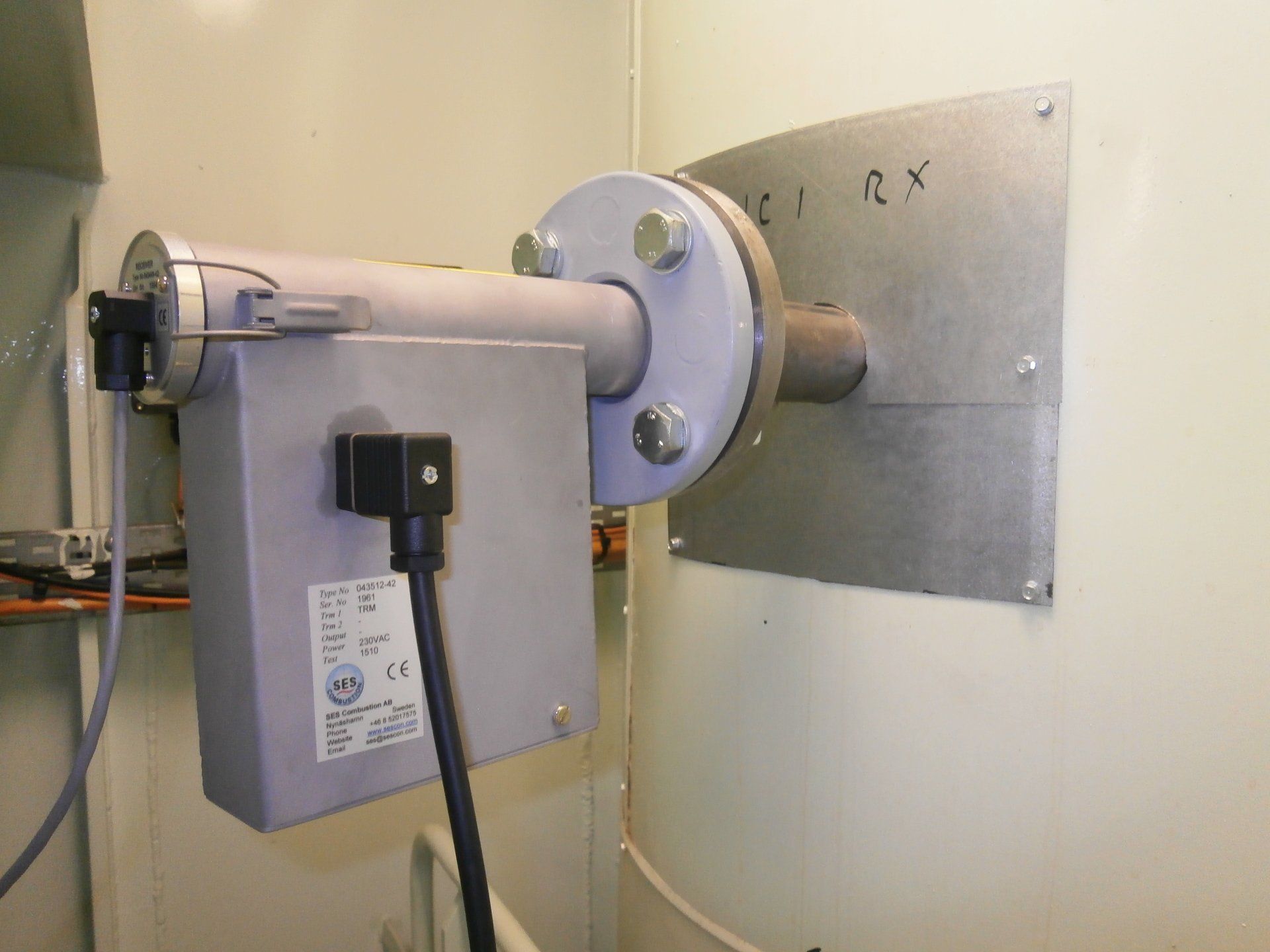

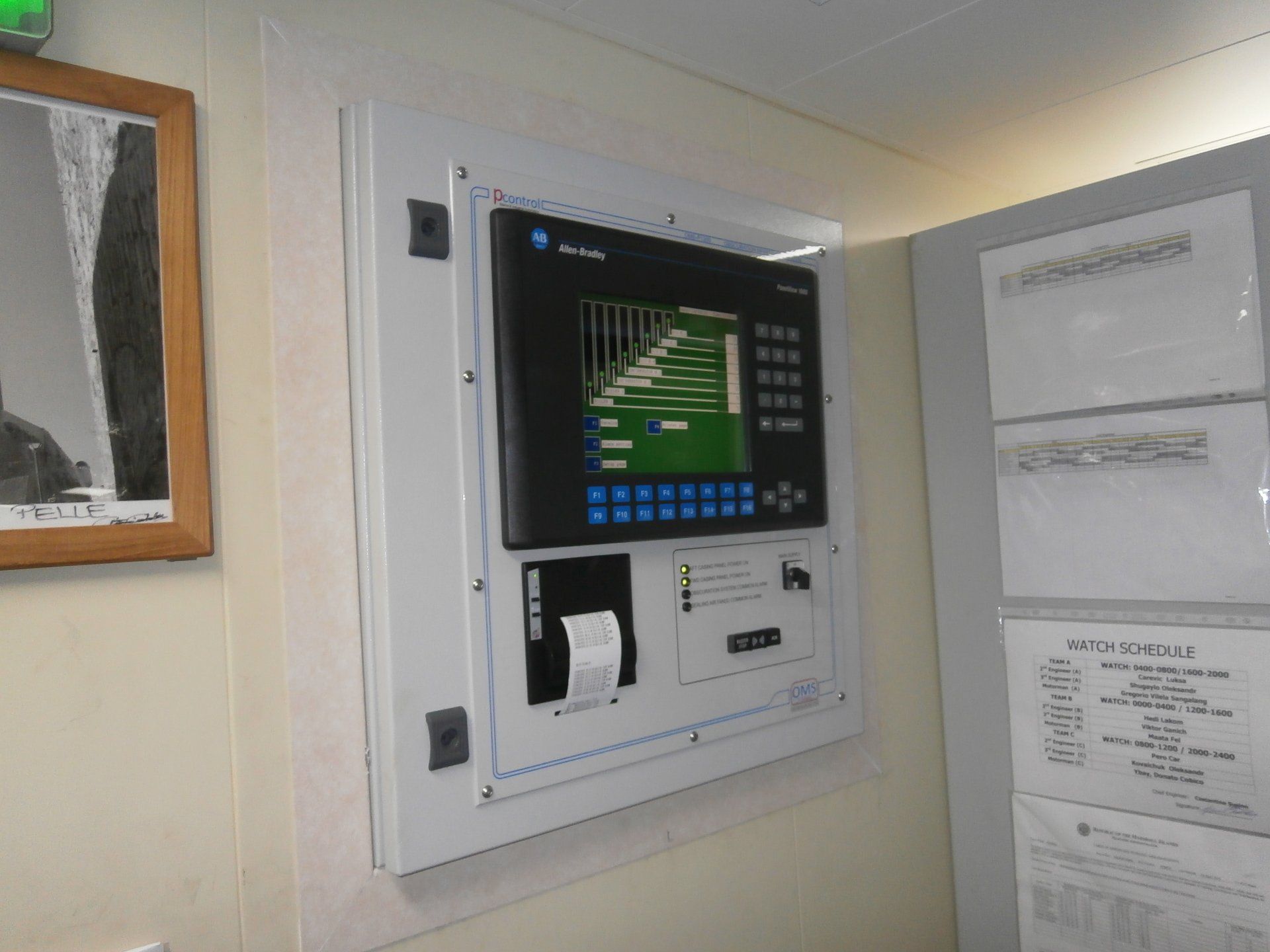

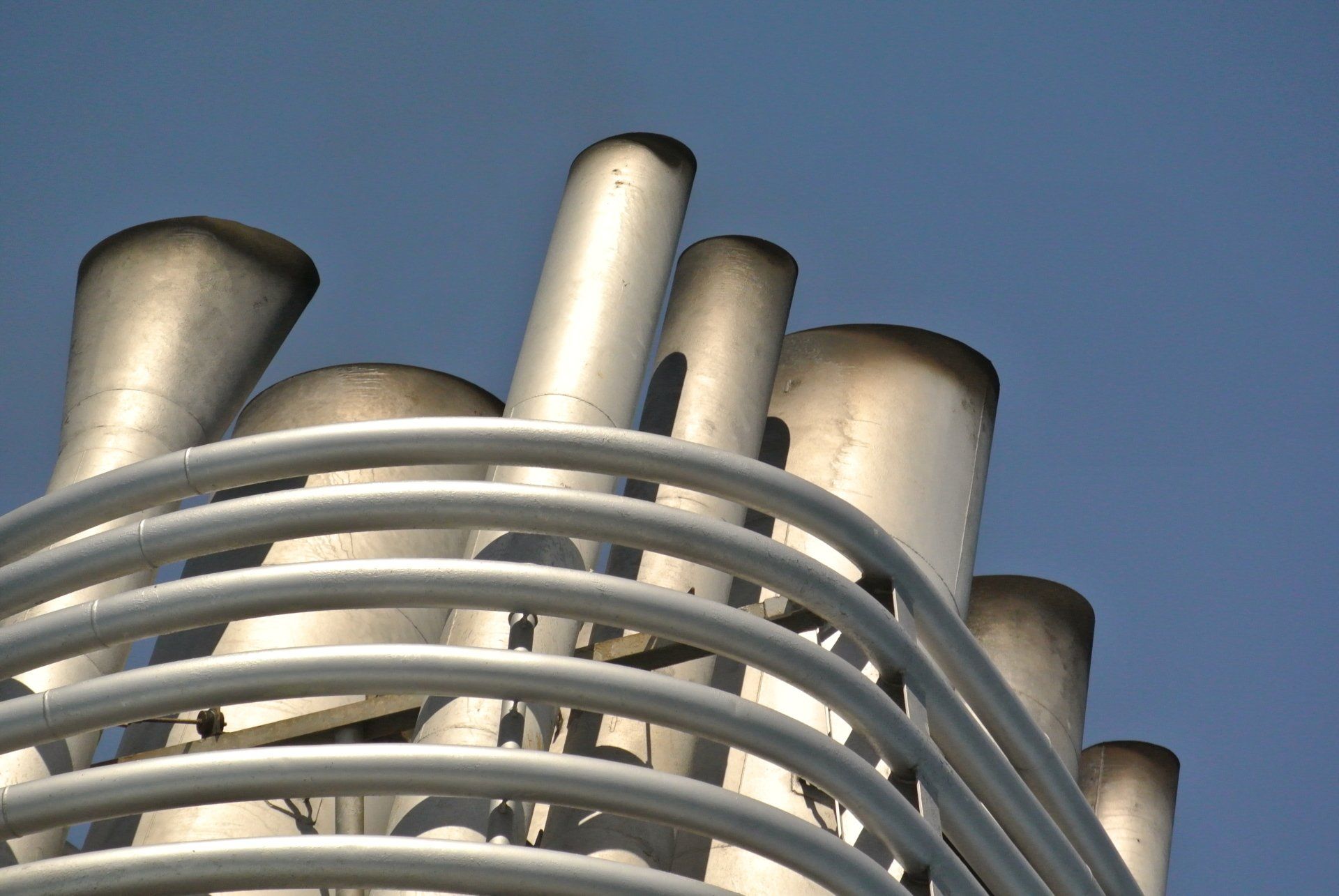

Comprises two optical units, a projectors (light source) and receiver (photo voltaic Cell), which are mounted on the boiler stack, or exhaust duct and a controller. The optical units are connected by electric cables to the control units mounted on Main Panel normally located in the boiler house or casing. The Main Panel is interfaced to Monitoring Panel normally located on E.C.R. where there is the supervision of all measure with alarms for high % opacity and event printer to record any event. The system measures percentage obscuration of the light source caused by soot or dust particles passing through the beam, and converts this to a digital display. The system may have (Option) a independent sensors purging equipment composed by dedicated screw compressor 7,5 KW , 500 liters air bottle with pneumatic connection to each sensor.

> BOILER, MM/EE, DD/GG, INCENERATOR EXHAUST DUCT OPACITY CONTROL

> PASSENGER VESSEL

> SMOKE POLLUTION CONTROL FOR SPECIAL AREA

This innovative interface takes fire alarm event information from the fire panel, applies smart logic/transformation technologies, and broadcasts messages over multiple communication paths. The system instantly responds upon activation of the fire alarm panel, recognizes the identity of the device initiating the fire alarm

Integration: The fire panel interface is compatible with existing fire alarm panels and PA systems and requires little to no alteration to existing systems.
